Photoresist ultrafiltration systems

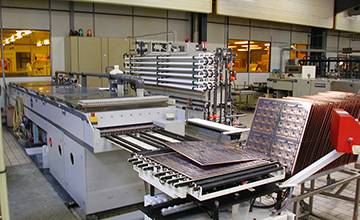

ultrafiltration dry film and solder systems installed in Russia, mod. 12RTA-DEV

dry film ultrafiltration plant in France, mod. 3x8TA-DEV

dry film stripping ultrafiltration system, mod. 4TA-STRIP

dry film development ultrafiltration system, mod. 6TA-DEV

dry-film ultrafiltration system, mod. 8RTA-DEV in France

dry film ultrafiltration plant, mod. 5x8TA-DEV

For the regeneration of concentrated spent solutions of photoresist and soldermask development and stripping processes, Tecn.A. builds ULTRAFILTRATION SYSTEMS with tubular membranes.

CONTINUOUS REGENERATION OF THE SPENT SOLUTION

The spent solution is continuously sent to the ultrafiltration work tank, where the photoresist is separated until the maximum acceptable concentration is reached.

RECYCLING THE PERMEATE

The clean solution, on the other hand, permeates through the membranes and is sent back to the machine, subject to repetition. Tecn.A. has developed this process since 1991, reaching a high level of perfection and standardization in production, with fully automatic systems, using direct-import tubular membranes.
